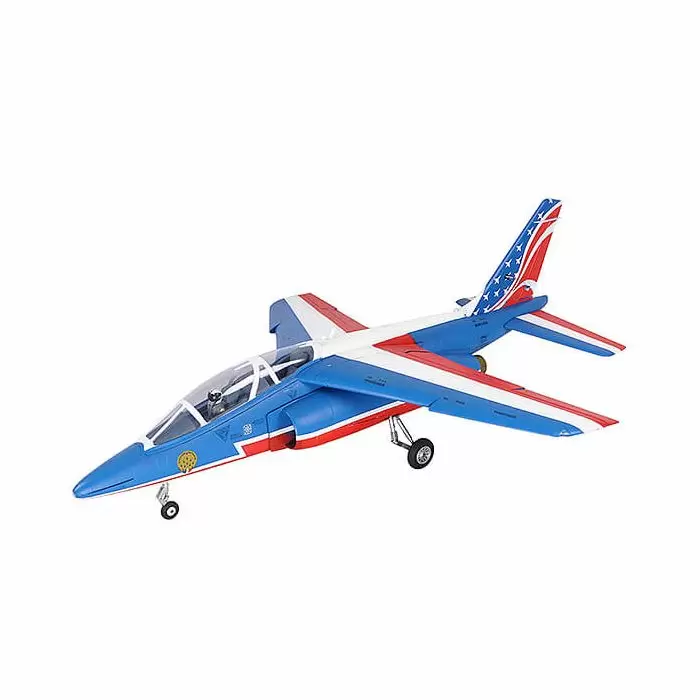

XFly Alpha Jet 80mm EDF 970mm Wingspan XF102P-B

Xfly-Model presents its new sports jet “French Air Force” the famous AlphaJet of the Patrouille de France in 80mm EDF. It is equipped with a Galaxy X-8 12-blade 80mm EDF that excels at both high and low speeds.

Xfly-Model engineers over the years have been responsible for the design an development of OEM EDF systems in a number of 3rd party aircraft for a number of years. With the release of the EDF jet “Alpha Jet” they have improved their already proven EDF system into the new Xfly Galaxy-X EDF series. Powered by 6S Li-Po battery, high-RPM brushless inrunner motor and 100A ESC it delivers class leading performance with virtually instantaneous throttle response, excellent top speed, vertical performance and turbine-like sound.

The Alpha jet possesses very stable flight characteristics but is more than capable of most aerobatics when required, meaning it is not only a good choice for the enthusiasts who enjoy high speed or aerobatic flight, but also an excellent trainer EDF jet with fantastic performance!

Imagine yourself with several people reproducing the acrobatic sequences of the famous Patrouille de France!

Features
* 6 operable channels (Aileron, Elevator, Throttle, Rudder, Retracts, Flaps)
* “Galaxy-X8” 80mm EDF system with high-RPM brushless inrunner motor and 100A ESC deliver fantastic performance with virtually instantaneous throttle response
* Maximum thrust of 3400g (7.5 lb) and continuous thrust of 3100g~3200g (6.8~7 lb) when being powered by 6S LiPo battery
* Digital metal-geared servos on all flying surfaces and ball-link equipped linkages deliver precise response to your control inputs
* Servoless retracts with billet CNC shock-absorbing, trailing-link struts combine for easy grass operation and heavy landing
* Functional flaps for shorter takeoff and landing plus improved slow-flight performance
* Integrated wing connector for easy installation or removal of main wing
* Glueless assembly-only eight screws needed to complete assembly
* Removable magnetic nose cone and ventral fins all fitted with plastic caps for durability
* Large battery tray allows for up to 6S 5000mAh Li-Po for increased flight times
* Six bright navigation LED lights
* Constructed of durable EPO flex foam

Content
* XFly Alpha Jet 80mm EDF JET PNP
* EDF: 1x 80mm 12 blades (Galaxy X-8 6S version)
* Motor: 1x Brushless Inrunner 3280-KV2200
* ECS: 1x 100A Hobbywing with EC5 connector UBEC 5A
* Servos: 3x13g Metal Digital – 5x9g Metal Digital – 1x17g Metal Digital

Required
* 6-Channel radio transmitter
* 6-Channel receiver
* 6-Cell 22.2V 4000-5000mAh LiPo battery 35C with EC5 connector (nota: If the battery of discharge rate is more than 100C, please use the 120A ESC instead)
* 6-Cell compatible battery charger

Technical Specifications
* Wingspan: 970mm / 38.20in
* Length: 1250mm / 49.20in
* Wing load: 129g/dm2
* Wing Area: 21.2dm2
* Flying weight: around 2560g
* Ailerons: Yes
* Elevator: Yes
* Rudder: Yes
* Flaps: Yes
* Retractable Landing Gear with shock-absorbing
* LED Wingtip Lightings
* Recommended Radio: 6 channel
* Recommended environment: Outdoor
* Flying time: Approx. 4-8 minutes
* Takeoff/Landing: runway or short grass
* Mounting duration: around 10 minutes
