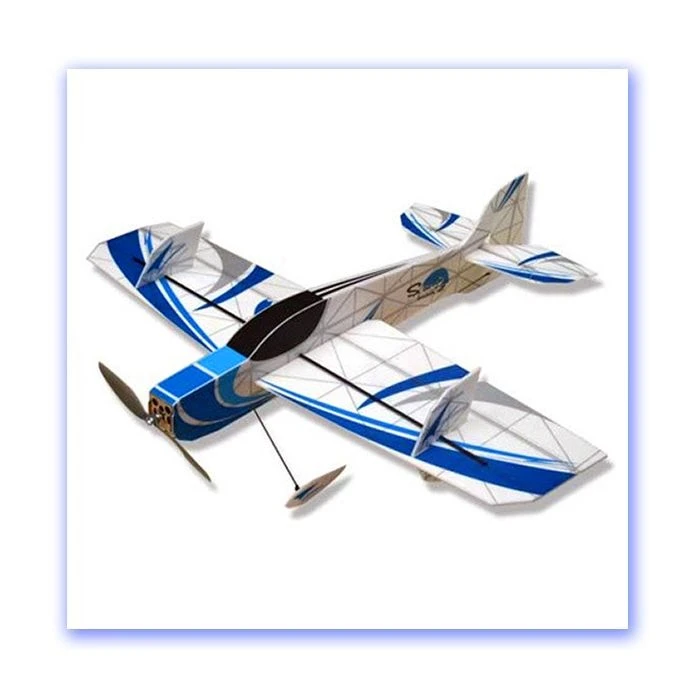

TECHone Spark 3D Aerobat / Park Flyer (878mm)

This TECHone Spark is a 3D capable mid-wing, sport plane designed to make the transition from sport models to the more challenging 3D aircraft easier.

This is a part built up model constructed from 3mm screen-printed Depron sheet. The wing and tail surfaces are flat section. The built up fuselage incorporates formers with local plight ply reinforcement to form a fully sectioned fuselage. This results in a very crash resistant airframe with just enough flex built in to allow the structure to ‘give’ when needed. The hollow construction uses carbon reinforcing to provide a very lightly loaded airframe while the bright colour scheme makes it highly visible.

The Spark has a light wing loading resulting in very forgiving flight characterisitics with excellent slow speed handling while its large control surfaces provide excellent control authority.

Experienced 3D pilots will appreciate the uniquely designed, sport aerobatics or stick bending 3D – the Spark 3D is up for what ever you are.

Features:
* 3D  Aerobatic performance
* Hollow light weight fuselage
* Flat section wing
* Large control surfaces for precise control in high Alpha flight
* An ideal design for the beginner learning 3D aerobatics
* Capable of sport to extreme 3D Aerobatics
* Generous wing area and light wing loading for superb slow flight response

Specification:
* Wingspan: 878mm / 34.5in
* Length : 815mm / 32in
* Weight: 272-305g / 9.6-10.8oz with battery
* RC functions: ailerons, elevator, throttle, rudder

What’s in the box:
* Depron foam airframe: fuselage, one-piece wing, tail surfaces
* Carbon fibre rod and strip
* Small parts pack
* Light weight wheels
* Illustrated assembly instructions

Required:
* Motor: A20-30M or 2208/34 brushless outrunner
* ESC: 18A (dependent on motor/prop/battery combination)
* Prop: 10 x 4.7SF (dependent on motor choice)
* Servos: 4 x 8g (ailerons, elevator, rudder)
* Battery: 800 ~ 1000mAh 2S (7.4V) LiPo (dependent on motor/prop combination)
* RC system: TX/RX min 4-channel
* Glue: Foam Friendly CA (with Kicker) or UHU-por

Our recommended 2S LiPo power setup:
* Motor: 47g 1400KV (120W) A2212(2826)-10T brushless outrunner
* ESC: Basic 20A ESC
* Prop: GWS 9 x 4.7SF
* Servos: 4 x 8.6g EMax ES08DE
* Recommended Battery: 800mAh 2S (7.4V) LiPo
