Techone M Zone Airframe Only

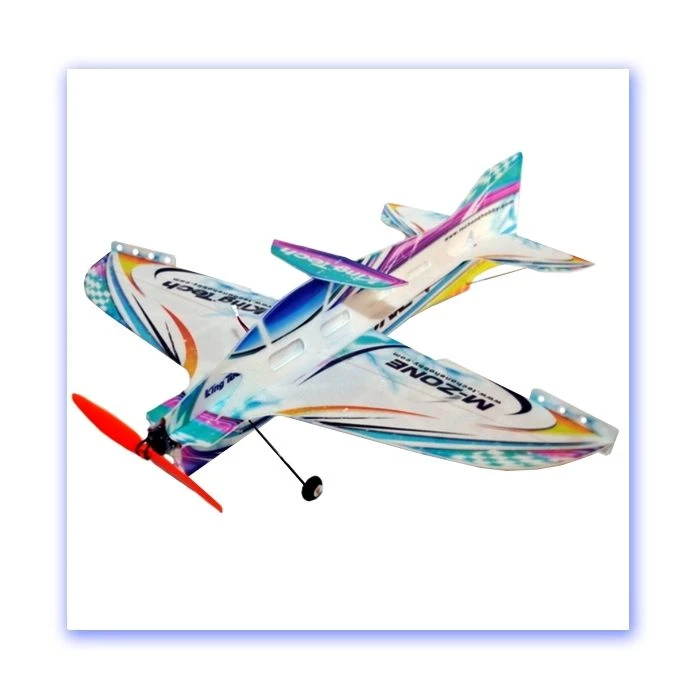

Now in stock the tiny M-Zone Micro indoor plane .

 Available either as Airframe only (ref 401576) or with  complete power pack as listed below.

Specifications:

Fuselage length: 480mm (18.9in.)
Wingspan: 445mm (17.5in.)
Flying Weight: 35-36g (with battery)
Motor: Tiger1302; ESC:T3Amp
Propeller: GWS 5030
Servo: 2.1g micro servo * 3pcs (2.1g  without leads)
Radio:4/more channel
Receiver:Spektrum AR6300 or Micro receiver under 2g Weight
Battery: 3.7V 120-150mAh Li-po 15C

Micro Power System:

With 60g motor thrust, the new micro power system is specially developed for micro 3D planes.It’s perfect for 45g 3D planes and 70g normal flying. And it could be well applied to TechOne micro planes—Blue Fox & M Zone, Ultra-micro 4-site from E-Flite, and other similar products.


MICRO ESC Specification

. Input voltage: 2.8V -4.2V                                 . Continue current: 3A
. Burst current: 4A (within 10 seconds)              . BEC output: NO
. Size( length X width X high): 11x13x8 mm       . Weight: 0.7 g

3.7v 150mah li-po weight: 4.4g

2g micro servo

. Size(Long*Wide*High):16*8.2*16.5mm  (0.63*0.32*0.65 in)
. Speed:  4.8v(s/60°)  0.08
. Torque: 0.2kg*cm/2.8oz*in
. Weight:2.1g(without lead)

Tiger 1302 motor ( Recommended propeller–GWS 4025 or 5030 )

Technical Datas

. KV 5900                                                . Lipo cells  1s
. Max.efficiency     76.0%                       . Current at Max.eff 1.5~2A
. Max.current（10s） 4A                          . No Load Current 0.3A/3.7V
. Intemal Resistance 375mOhm             . Dimensions（Dia.xL）Φ16mm×8mm
. Shaft 1.5mm                                         . Weight 5.4g
