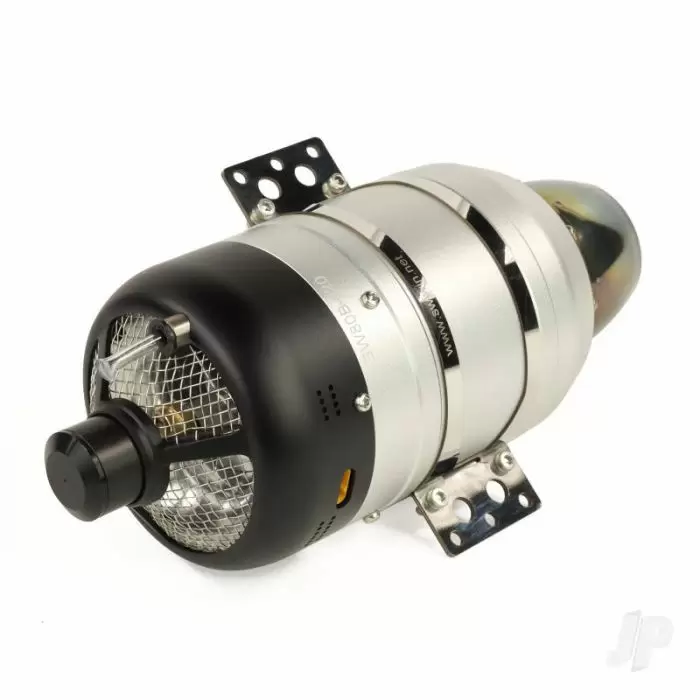

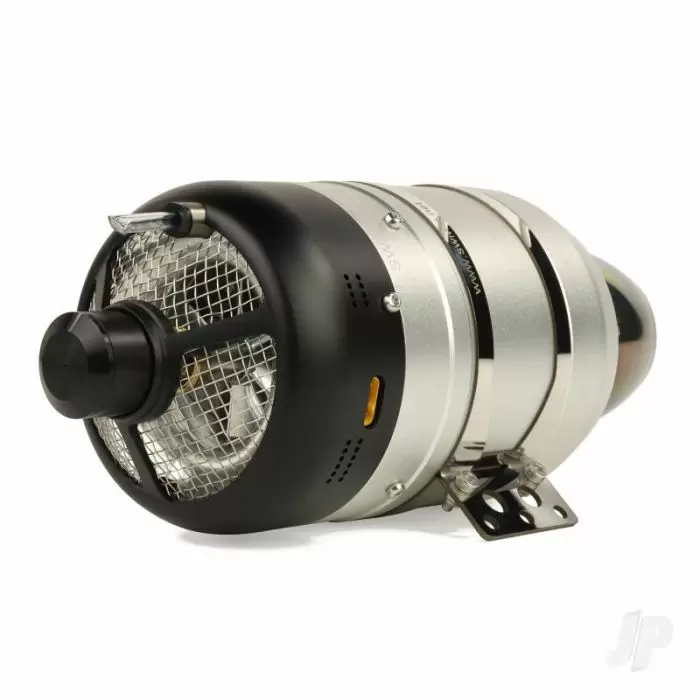

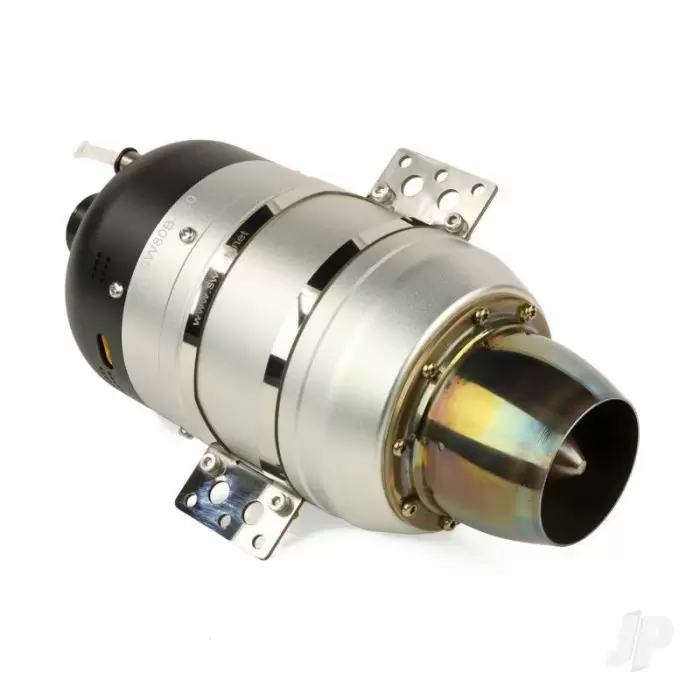

SW80B Turbine Jet (8kg Thrust) SWWT080B-003

Key Features

• Compact design.
• Brushless starter and telemetry functions.
• 32-bit auto restart ECU.

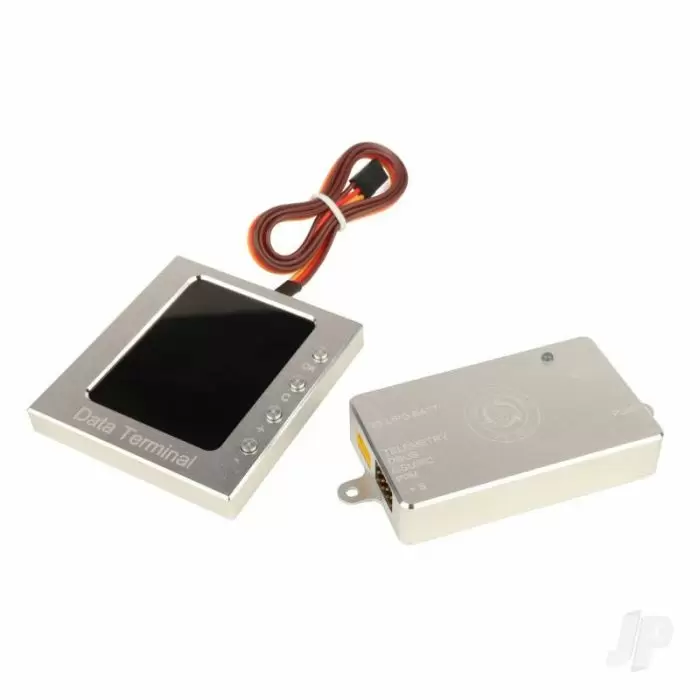

• Colour screen data terminal.
• CNC compressor wheel.
• Rapid throttle response.

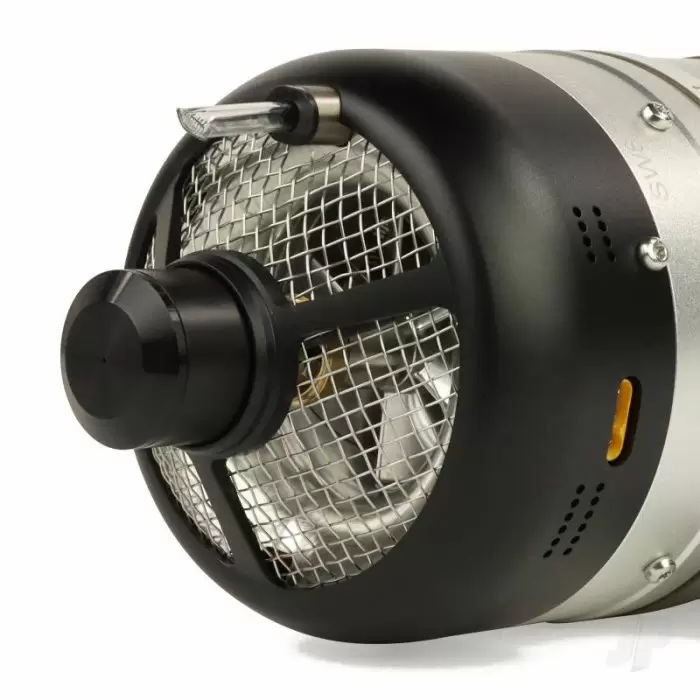

• Built-in FOD guard.
• Silver / black can.

Product Description

Established in 2013 to design, develop and manufacture miniature turbine engines for the aircraft industry, the Swiwin Turbojet Company has been around more than long enough now to have honed its craft to perfection. And so it has. One look at the design, engineering, performance and overall quality of the engines in this ever-expanding range will tell the jet flying cognoscenti all they need to know. However, for those who aren’t quite so well informed we can begin by telling you that Swiwin’s latest generation of kerosene-fuelled auto-start turbines offer exceptional response times, brushless starter technology, telemetry functionality and, crucially, UK servicing and repair.

Diameter: 84mm
Length: 203.4mm
Weight: 780g
RPM range: 50,000 – 155,000
Thrust: 80N / 8kg at 15°C
EGT: 650°C max
Fuel consumption: 270 g/min
Fuel: Kerosene
Lubrication: 5%
Maintenance cycle: 25 hours
Start: Full auto start

Technical Specifications

Weights & Dimensions
