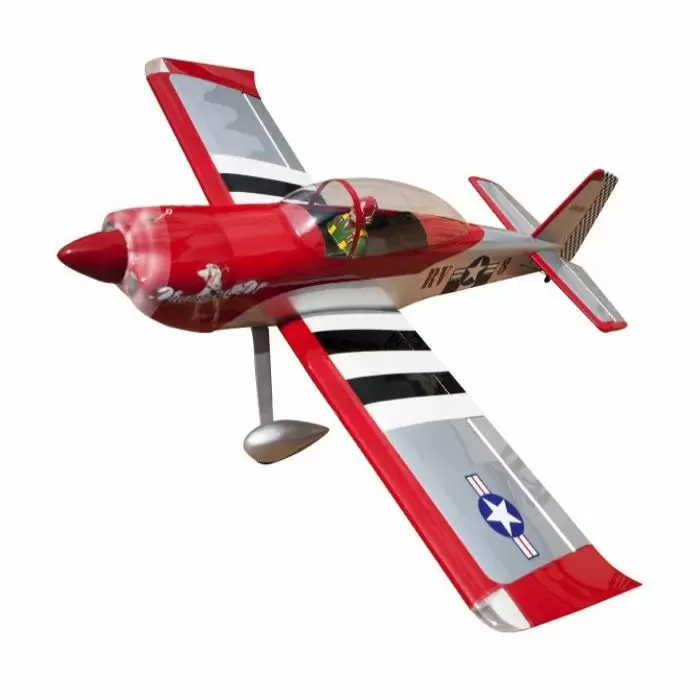

Seagull Models Van RV-8 Diamond Di 20cc 1.8m (70.9in) (SEA-249) 5500164

Stylish, aerobatic, pretty, and with sleek racy lines, there’s little not to like about the RV-8. Truth is the overall proportions, the parallel chord wing, the sturdy looking fixed undercarriage and the fighter-like bubble canopy combine to make this a gorgeous flyer and a modeller’s dream. Seagull certainly knows a good aeroplane when it sees one and this one is guaranteed to win friends, particularly with such a useful wingspan; 70″ is a perfect, practical size for everyday use yet still large enough to really make an impression and display presence in the air. Absolutely ideal for a 91 cu. in. four-stroke the RV-8 uses 8 standard servos and a minimum of 6 channels, although a computer radio with 7 or 8 channels allows the twin aileron, flap and elevator servos to be mixed and reduces the use of Y-leads.

Built using Seagull’s time-honoured CNC-cut interlocking balsa and ply construction and pre-covered in diligently applied Oracover heat-shrink film this is a model that builds quickly, looks fantastic, and suits anyone with previous low-wing aileron experience.

Features
* Lightweight, high quality CNC-cut balsa and ply construction.
* Factory covered with genuine Oracover film.
* High quality pre-painted glass fibre cowl.
* Cockpit detail with pre-painted pilot figure.
* Full hardware pack included for either glow or electric power.
* Includes i.c. and electric power conversion pack.
* Plug-in wing panels greatly assist storage and transport.
* Functional flaps enhance the flight performance and assist short landing and take-off.
* Large removable battery hatch for easy radio and flight battery access.
* Painted aluminium landing gear.

Specification:
* Wingspan: 1800mm
* Length : 1473mm
* Weight (lb): 11

What’s in the Box
* Pre-finished fuselage assembly.
* Pre-finished wing set.
* Pre-finished fin and rudder.
* Pre-finished tailplane unit.
* Painted aluminium undercarriage unit.
* Clear canopy moulding.
* Aluminium tubular wing joiner.
* Pre-painted glass fibre cowl.
* Pre-painted pilot figure.
* Hardware set (horns, hinges, linkages, pushrods, fuel tank etc).
* Comprehensive instruction manual.

Required to Complete
* Radio 6-channel transmitter and receiver
* Engine 15 – 20cc petrol, .91cu. in. 4-stroke glow.
* Suitable propeller for engine.
* Electric motor  : 1500 – 2000W
* 4 x Servo extension leads for flap and aileron servos.
