RC-Factory De Havilland DH100 Vampire

This is a simple, easy to build and fly Depron jet. It requires a 50mm EDF unit such as the GWS EDF50 fan powered by a 12mm brushed or brushless motor on 2S (7.4V) LiPo.

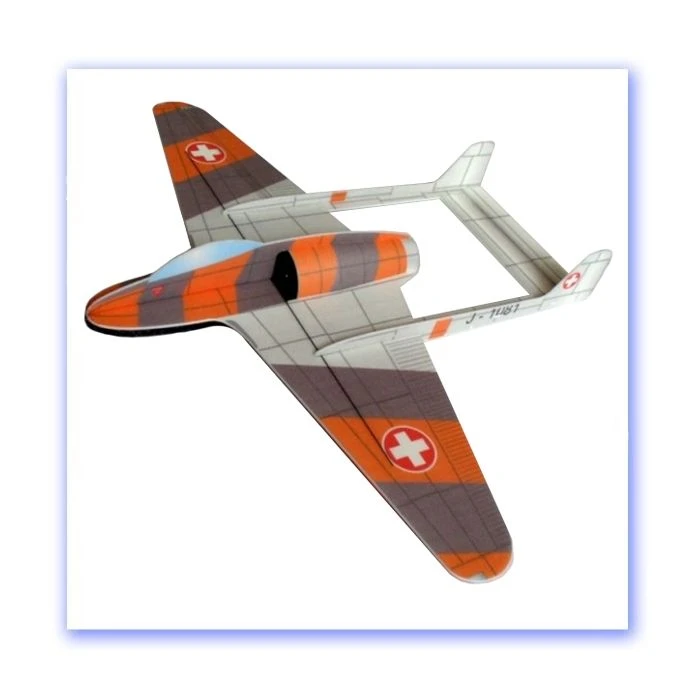

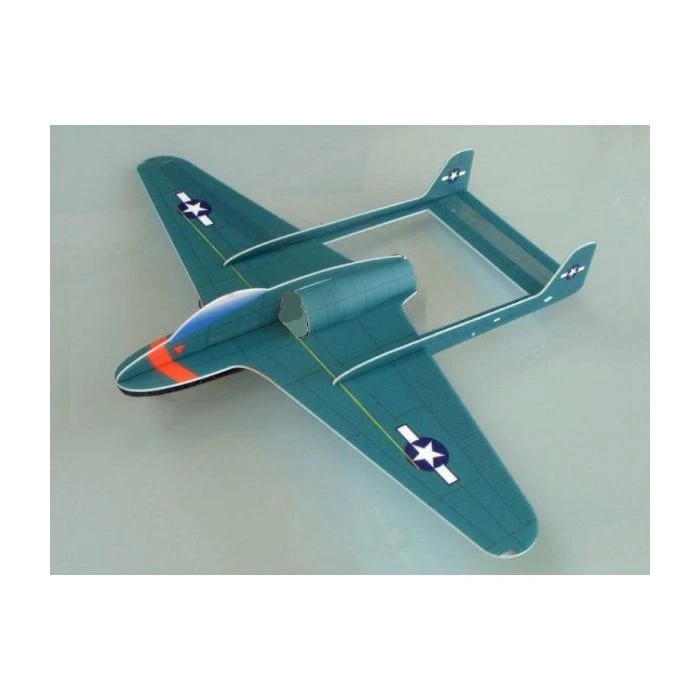

Available in various colour schemes – ‘RAF Roundels’ or ‘USA Stars and Bars’.

Features:
* One of the Lil’ Jets series from RC-Factory
* Simple build pre-printed Depron sheet profile model
* Designed around GWS 50mm EDF unit
* Single aileron design
What’s in the box:
* Profile Depron pre-printed airframe parts with EPP lower fuselage
* Pushrods and carbon reinforcing strip

Specifications
* Wingspan: 600mm
* Length:1010mm
* Flying Weight: 90 – 105g
* Functions: Aileron, Elvator Throttle

Required to complete:
* 50mm EDF unit with suitable 12mm brushless inrunner motor
* 6-10A ESC (dependent on motor choice)
* 2 x micro (4-6g) servos (ail, ele)
* Battery:  300~500mAh 2S (7.4V) LiPo
* Radio System: TX min 3-channel with micro receiver
* Foam Friendly CA glue or UHU Por contact adhesive

Our recommended setup:
* GWS EDF-50 Fan Unit (stock no. 411232)
* B12-30-14 5200KV Brushless Inrunner Motor (stock no. 400063) or Hyperion Y-12 4100KV Brushless Inrunner Motor (stock no. 400065)
* Pro 10A ESC (stock no. 400211)
* Servos x 2: EMax 4.3g ES9051 Digital Servo (stock no. 406015) or
Gening 4.7g D541BB Digital Servo (stock no. 406031)
