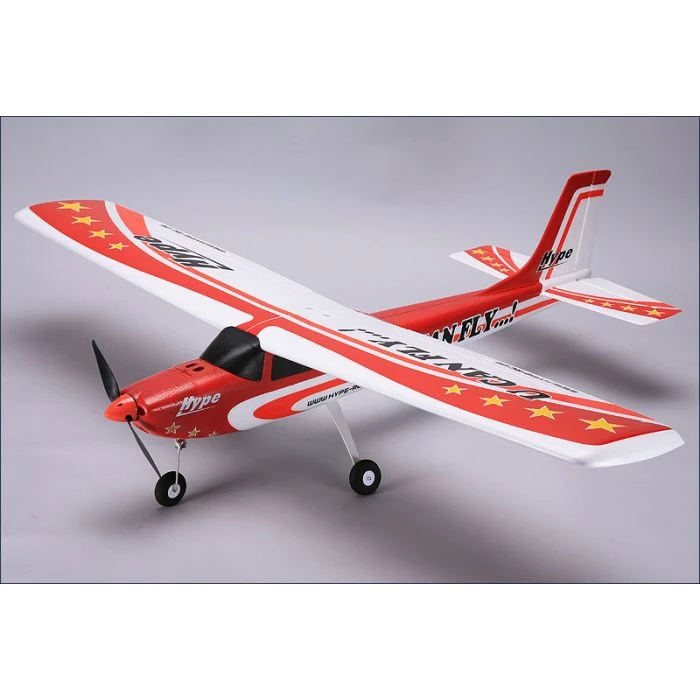

Hype U-Can-Fly ARF Trainer

Specifications

Wingspan: 1.460 mm; Length: 1.220 mm; Weight approx.: 1.250 g; Motor: Brushless; Battery: LiPo 3s 11,1V; Radio system: 2.4GHz; Scale approx.: 1:9

RC functions

Elevator, Rudder with nose gear, Aileron, Motor, Loading hatch

description

Just when you read the name of the model – everything is said and done. Flying can be so easy…! The U-Can-Fly-trainer is the ultimate key for your feelings of success. just a few handles and the model is raedy to go. Depending on the version, you possibly have to install the radio system into the model. The assembly of the model does not need any glue, all parts are fixed by an intelligent plug-in system. As a special feature the UCF-Trainer is equipped with a loading hatch that can be released by the radio system during flight. So you can release candies, parachutists and many other things during flight. All rudders are attached as gapless elastoflaps for maximum aerodynamic effeciency.

The basic idea behind the UCF-Trainer was to create a model, that everybody can fly within a very short time. Due to its stable flight and the low airspeed, the UCF-Trainer is the first choice for all beginners. But also intermediates and professionals will love to fly this trainer as well.

Fuselage, wing and stabilizer are made of the innovative and lightweight material HypoDur®. This material delivers maximum rigidity at minimum weight. The model is equipped with separated wing halfs, which can be installed / removed easily for transportation. The wing joiner is made of carbon. By a special plugin-system the wings are fixed securely to the fuselage. With two M6 nylon scres the wings are fixed to the fuselage. In case the model hits the ground too hard, the wing snaps off in oder to avoid any further damage.

The U-Can-Fly-Trainer gets powered by LiPo-brushless-system, that harmonizes perfectly with the flight characteristics of the model. The speedcontroller is ready to go programmed and connected in the model. The battery can be changed by opening the hatch on the upper side of the fuselage. The 5 micro servos are installed and connected to the rudder controls. Each aileron is linked by a separate servo.

The loading hatch gets controlled by a micro servo that is linked to it. All components are ready to go installed in the model. The loading hatch can be loaded from the bottom side of the fuselage or from top, when the wing is removed.

The model is available as ARF or ReadySet version. Both version are availble in three different colour styles (red / blue / green). The ARF version includes brushless motor, speedcontroller and 5 micro servos. The ReadySet version also includes the 2.4GHz radio system, balancer charger and a 3s LiPo battery. Due to the high degree of prefabrication it only takes a few handles to get the model ready to go.

Right after take off the UCF-Trainer shows its full strength. The slow speed and the stable flight behaviour give plenty of time to the pilot for deciding the next flight maneuver. Also during landing the model is very stable and follows the pilot’s steering precisely. By using the loading hatch in order to release parachutists or candies, the U-Can-Fly-Trainer becomes the ultimate point of interest on each model airfield.

Features

• Contemporary trainer model with unique design
• Fuselage, wing and stabilizer are made of the lightweight material HypoDur®
• All servos are installed and connected with the rudder linkages
• HiPower brushless-motor
• Easy to handle flight behaviours
• All rudders attached as gapless elastoflaps
• Loading hatch for releasing parachutists and other things
• No glue is needed for building the model
• Separated wing halfs with plug-in fixation
• Wing joiner made by carbon
• 95% preassembled means short time to completion
• Easy to handle
• Available colour designs: red, green & blue

delivery

• Fuselage, wing and stabilizer made of the lightweight material HypoDur®
• Brushless motor
• Brushless speedcontroller
• 4 micro servos

Required Accessories

• 5-channel radio system
• nVision LiPo battery 11,1V / 1.900mAh, NVO1809
• X-Treme Charger LiPo X7 Plus, 082-6066

target group

Beginners, Intermediates & Professionals
