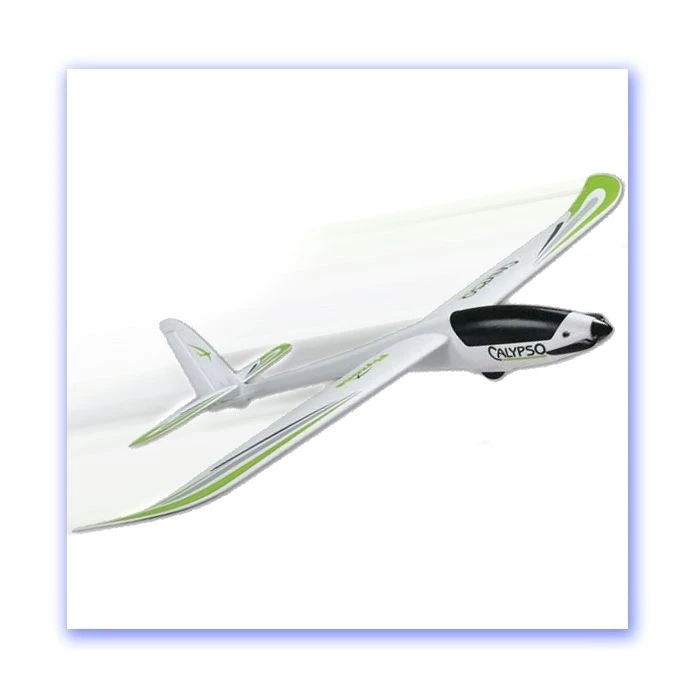

Calypso EP Powered Glider ARF

FEATURES

Construction: Aero-cell foam, white in color with green and black
trim
Wing: Two-piece
Aileron Control: Dual servo with flap option (SEE COMMENTS)
Battery Compartment: Located under canopy
Landing Gear: Landing wheel with nose and tail skid plates
Propeller: 9×5 folding design, black in color
Warranty: Flyzone guarantees this kit to be free from defects in both
material and workmanship at the date of purchase. This warranty
does not cover any component parts damaged by use or modification.

INCLUDES

Flyzone Calypso Glider with 9×5 Folding Propeller and Instruction
Manual

REQUIREMENTS

Radio: 4-5 channel with four micro servos (SEE COMMENTS)
Motor: 28mm brushless outrunner
Electronic Speed Control: 18A
24″ (610mm) Servo Extensions: Two for aileron servos
LiPo Battery: 11.1V 1300mAh
LiPo Battery Charger

Y Harness to mix ailerons (if radio does not have electronic mixing)
Shoe Goo type glue to glue in servos
Threadlocker and 1.5mm hex wrench

SPECIFICATIONS

Wingspan: 73″ (1855mm)
Wing Area: 526 sq in (33.9 sq dm)
Length: 47″ (1195mm)
RTF Weight: 29oz (820g)
Center of Gravity (CG): 1/4″ (6.5mm) ahead of spar
Control Throws: High Rate Low Rate
Elevator, Up/Down: 3/4″ (19mm) 18° 1/2″ (13mm) 12°
Rudder, Right/Left: 1″ (25mm) 19° 3/4″ (19mm) 14°
Ailerons, Up/Down: 5/8″ (16mm) 19° 3/8″ (10mm) 11°
Flap: 7/8″ (22mm) 22°
